GINA-Graphical Identification and Authentication
Description

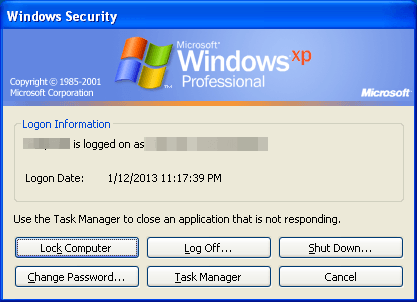

The Graphical Identification and Authentication (GINA) is a component of Windows 2000, Windows XP and Windows Server 2003 that provides secure authentication and interactive logon services
GINA is discontinued in Windows Vista.
GINA Interception
On Windows XP, GINA interception is a technique that malware uses to steal user credentials.
GINA is implemented in a DLL, msgina.dll, and is loaded by the Winlogon executable during the login process.
The GINA interception consists of injecting a malicious DLL between winlogon.exe and msgina.dll to intercept credentials:
+--------------+ +---------------+ +------------+ | winlogon.exe | ----> | malicious.dll | ----> | msgina.dll | +--------------+ +---------------+ +------------+
The path of the malicious DLL should be specified in
HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\GinaDLL
The malware needs to export all necessary functions required by msgina.dll to ensure the OS will continue to work normally. It implies that the malicious DLL exports all functions, many of which start with Wlx. Below is an example of such export table:
$ objdump -x Data_1.bin [SNIP] Il y a une table d'exportation dans .rdata à 0x10002320 Les tables d'exportation (contenus interprété de la section .rdata) Fanion d'exportation 0 Tampon Heure/Date 4855dd42 Majeur/Mineur 0/0 Nom 000024a8 gina.dll base de nombre ordinal 1 Numéro dans: Table d'adresses d'exportation 00000034 Table [Nom pointeur/Nombre ordinal] 00000018 Table d'adresses Table d'adresse d'exportation 00002348 Table des noms de pointeurs 00002418 Table des ordinals 00002478 [SNIP] Table [Ordinal/Nom de pointeur] [ 50] DllRegister [ 51] DllUnregister [ 28] ShellShutdownDialog [ 29] WlxActivateUserShell [ 30] WlxDisconnectNotify [ 31] WlxDisplayLockedNotice [ 32] WlxDisplaySASNotice [ 33] WlxDisplayStatusMessage [ 34] WlxGetConsoleSwitchCredentials [ 35] WlxGetStatusMessage [ 36] WlxInitialize [ 37] WlxIsLockOk [ 38] WlxIsLogoffOk [ 39] WlxLoggedOnSAS [ 40] WlxLoggedOutSAS [ 41] WlxLogoff [ 42] WlxNegotiate [ 43] WlxNetworkProviderLoad [ 44] WlxReconnectNotify [ 45] WlxRemoveStatusMessage [ 46] WlxScreenSaverNotify [ 47] WlxShutdown [ 48] WlxStartApplication [ 49] WlxWkstaLockedSAS
The majority of these functions are actually pass-thru functions that give the control to the true function of the same name in msgina.dll, excepted for functions where the malware is intercepting things.
