Drone-Build-Martian-II

Parts

Part	Selected part	Other possible choice
Frame	Martian-II	ImpulseRC Alien
Flight Controller	KISS flight controller
ESC	4 x 24A KISS ESCs
Motors	Lumenier RX2206-11 2350kV	Lumenier MX2206-9 2450kV Emax RS2205 motors.
PDB/OSD, BEC, LC filter	Matek HUBOSD8-SE*	TBS Core PNP50 Pololu step down 12V BEC Matek PDB/OSD (Matek HUBOSD8-SE) Reaktor PDB/OSD
Radio receiver	FrSky X4RSB
Camera	HS1177 (Foxeer XAT600M)
VTX	Lumenier TX5GPro Mini 600mW

(*) If I would have had a true Alien frame, my choice would have probably been a Reaktor PDB/OSD, but it seems not compatible (I've been confirmed by a representative from droneplastics.com that holes do not align) with the Martian II frame. This is why I've selected the Matek HUBOSD8-SE.

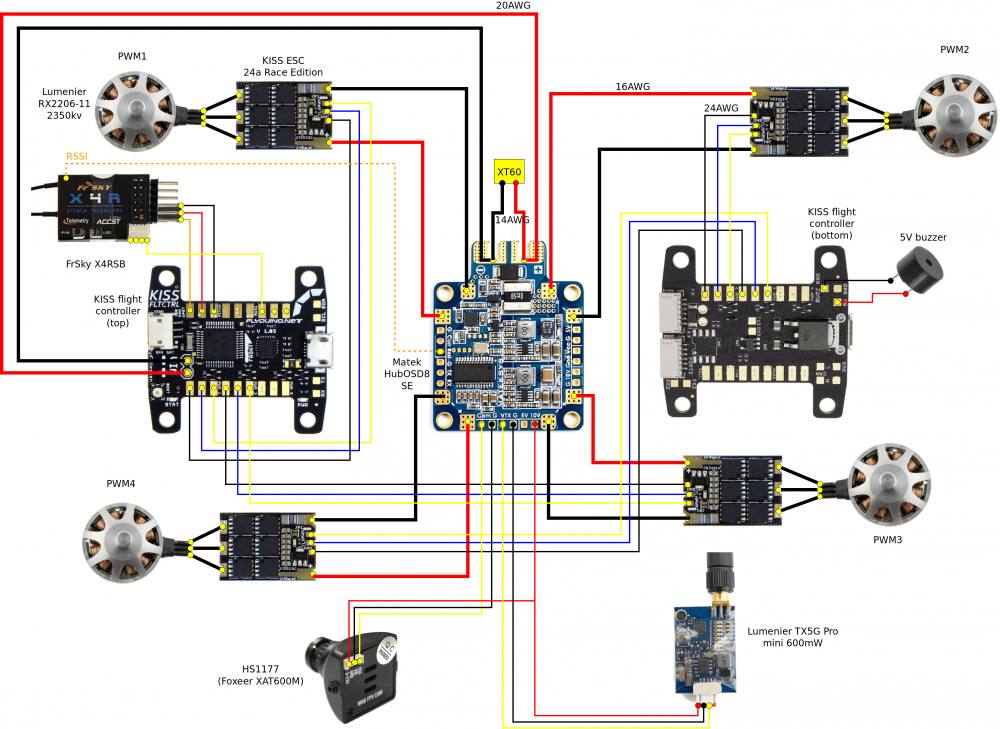

Schema

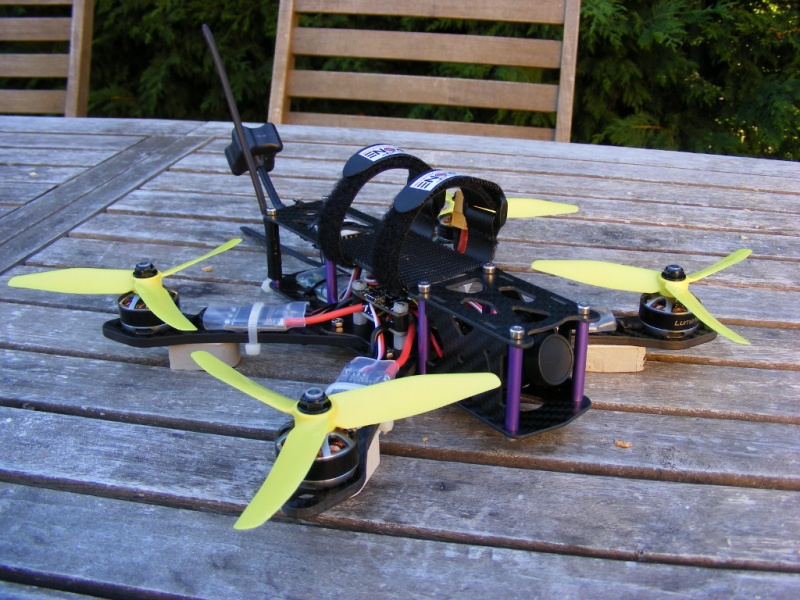

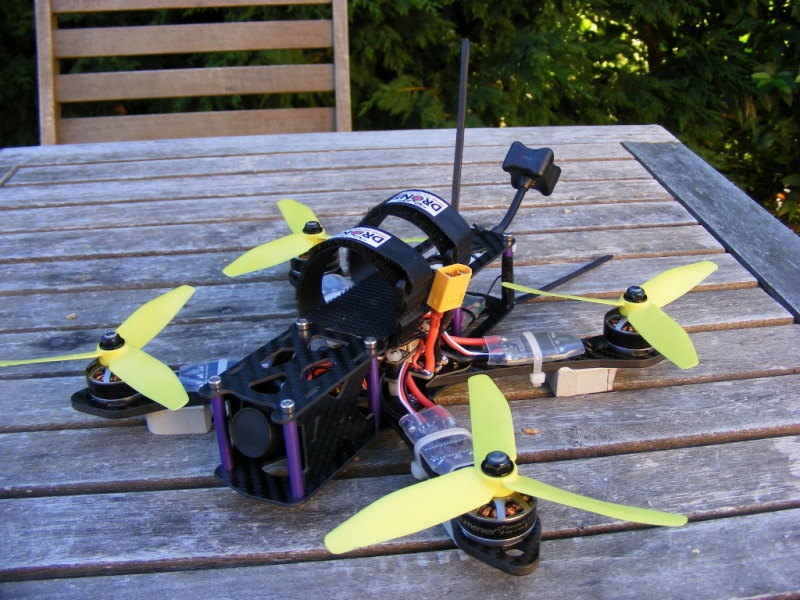

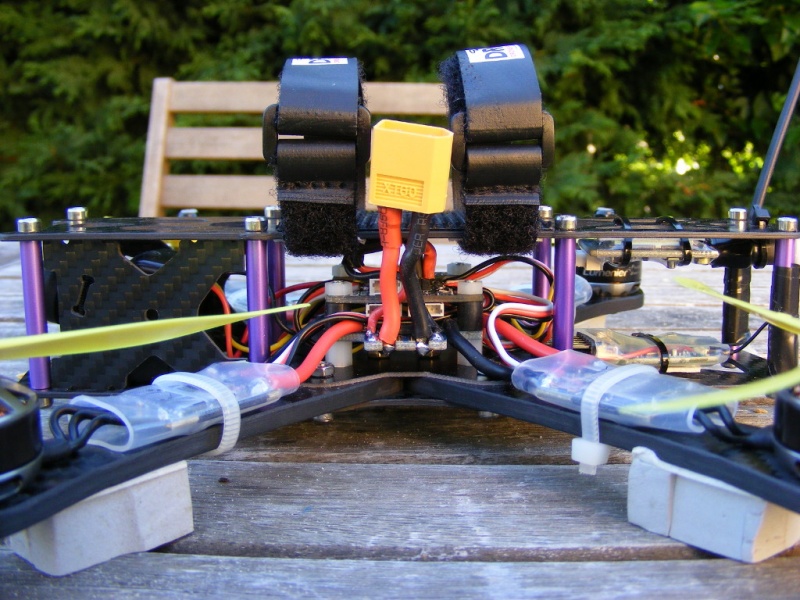

Pictures

Comments
