RevoltOSD (FlightOne, formerly RaceFlight)
You might also see: FlightOne configurator
You might also see: FlightOne Bolt32 -in-1 ESC

Specifications

  • Processor: F405
  • Gyro: Invensense 20602
  • Native OSD support
  • Direct lipo up to 6s
  • 3 serial UART ports

Electronic schema

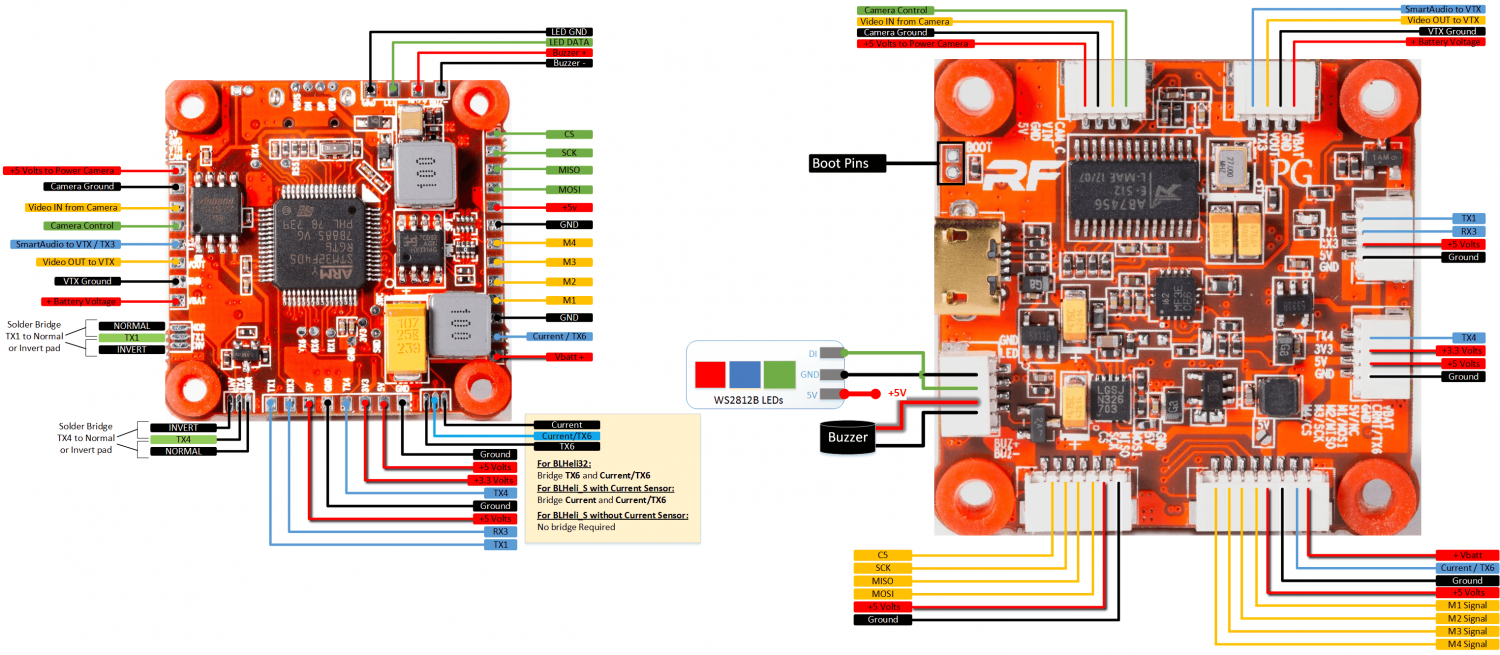

Pinout diagram

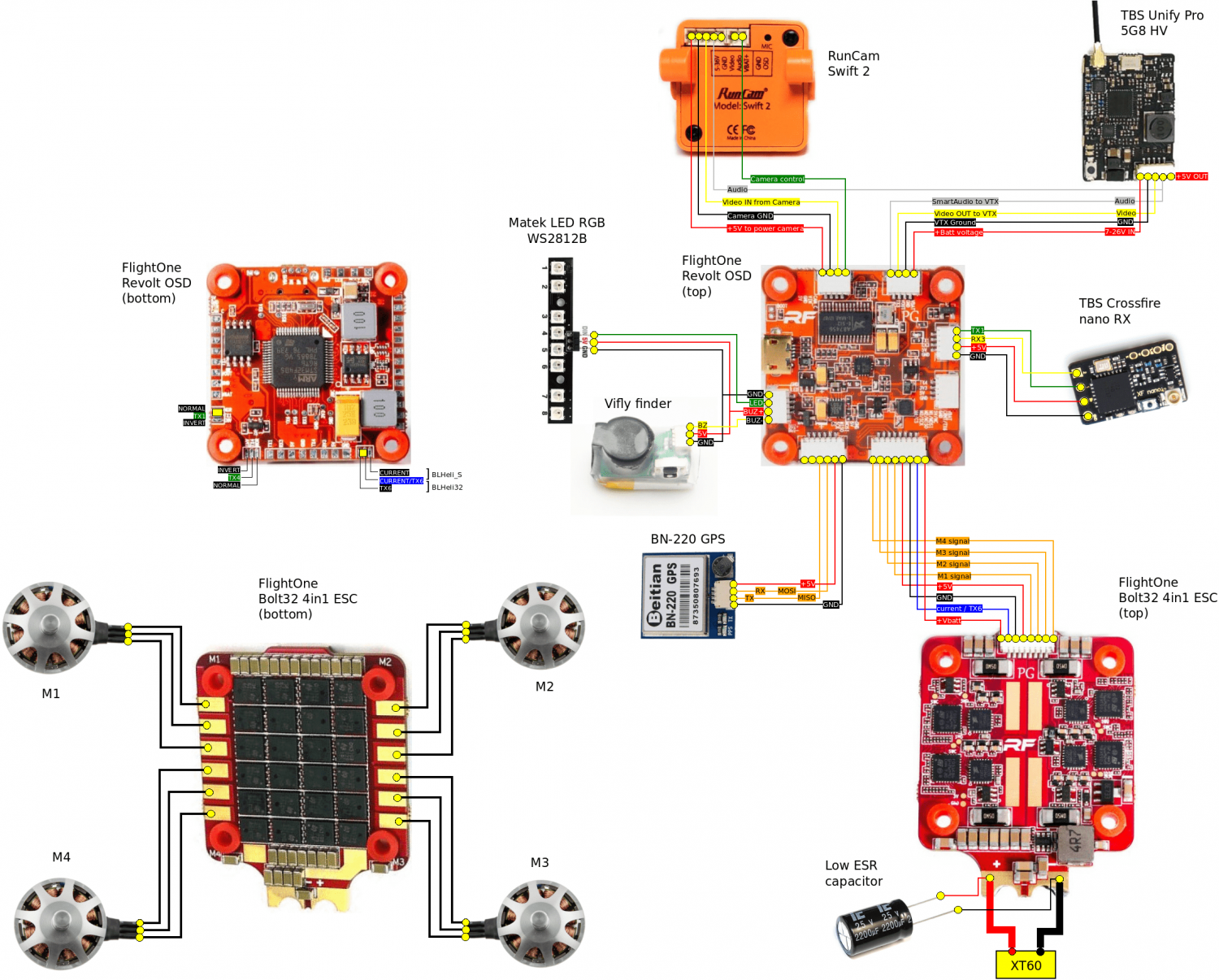

Wiring schema

Flash the RevoltOSD

Refer to this page.

SmartAudio

Crossfire wiring

To connect the Crossfire Nano RX to the RevoltOSD flight controller, connect wires as follows:

Crossfire Nano receiver RevoltOSD flight controller
GND Ground
5V in +5 Volts
Ch. out 1 TX1
Ch. out 2 RX3

On the Taranis, ensure you have the following mapping:

Output Map
    Output 1 CRSF TX
    Output 2 CRSF RX

Channel Map
    Dst.Ch. 8 RSSI/LQ

Via rf.lua script

At the time of this writing (Jul 22, 2018), the rf.lua script is not working (confirmation from FlightOne support team) with the latest version of OpenTX and is under re-development.

Via OSD

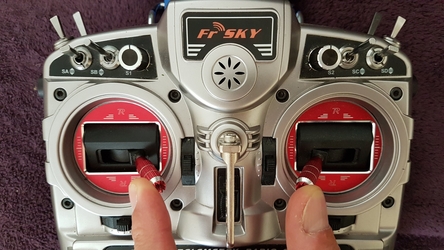

On the Taranis, put both stiks to the bottom, oriented to the center:

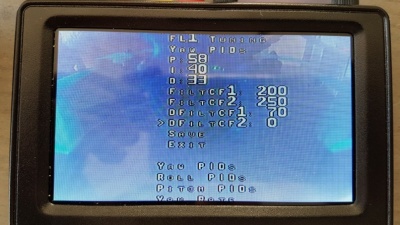

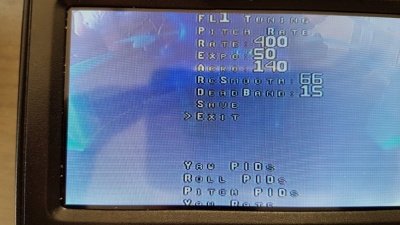

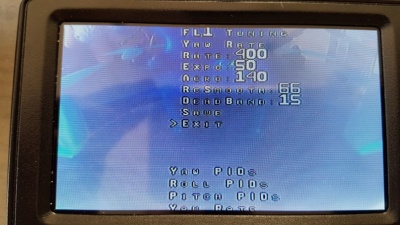

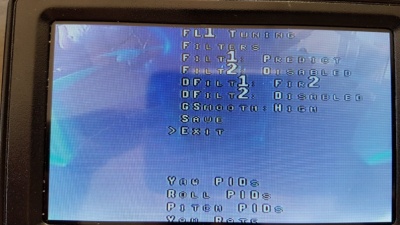

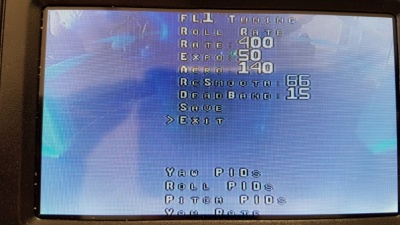

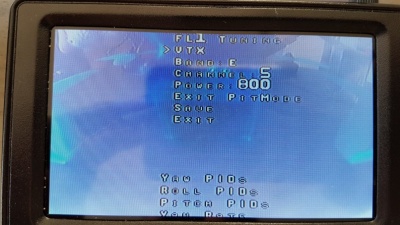

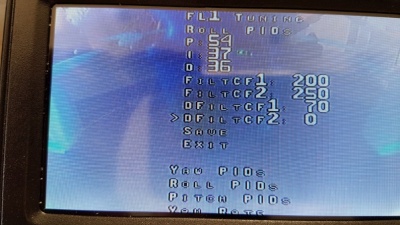

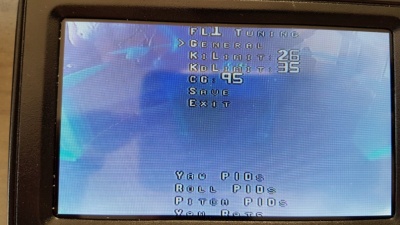

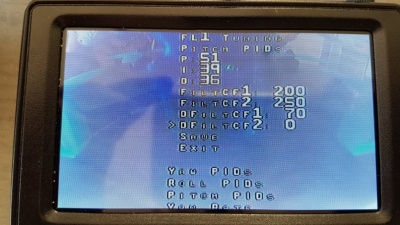

After a short while, a menu should appear in your OSD:
